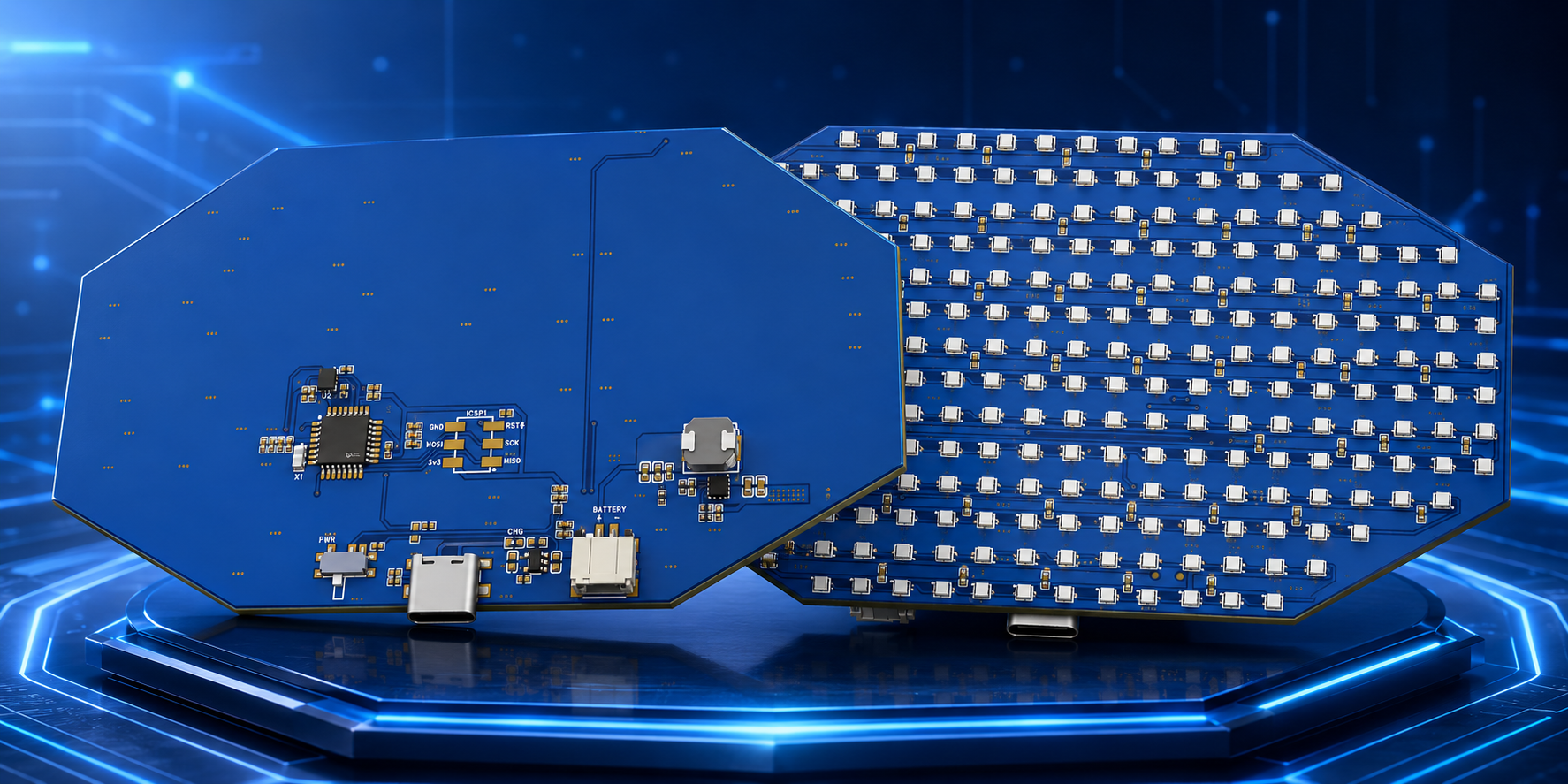

A portable, battery-powered LED display designed by Haizom Studios. The custom octagonal PCB carries a dense matrix of more than 200 LEDs on the front, with all the control, charging and power electronics hidden on the back.
A microcontroller with its own crystal drives the matrix, and an ICSP header allows in-circuit programming and firmware updates in production. A USB-C port charges the on-board lithium battery through a dedicated charger IC with a charge indicator, and a slide switch handles power.
An inductor-based switching converter generates a stable supply for the LEDs from the battery as it discharges, keeping brightness consistent. The layout routes every LED around the octagonal outline at an even pitch, so the display reads as one clean, uniform surface when lit.
