Low Power PDLC Film Driver based on nrf52xxx series

Low Power Electronics

HomePortfolioLow Power PDLC Film Driver based on nrf52xxx series

A battery-powered driver for PDLC smart film (switchable privacy glass), designed by Haizom Studios around the nRF52 Bluetooth Low Energy SoC. PDLC film turns from frosted to clear when it is driven with an AC voltage, so the board raises a low battery voltage to the film's drive level and switches it into an AC waveform across the film.

A wide-input boost converter generates the high-voltage rail, and an H-bridge output stage alternates the polarity to produce the AC drive without a mains transformer. The nRF52 controls the output and connects over Bluetooth Low Energy to a companion app, so the film can be switched from a phone.

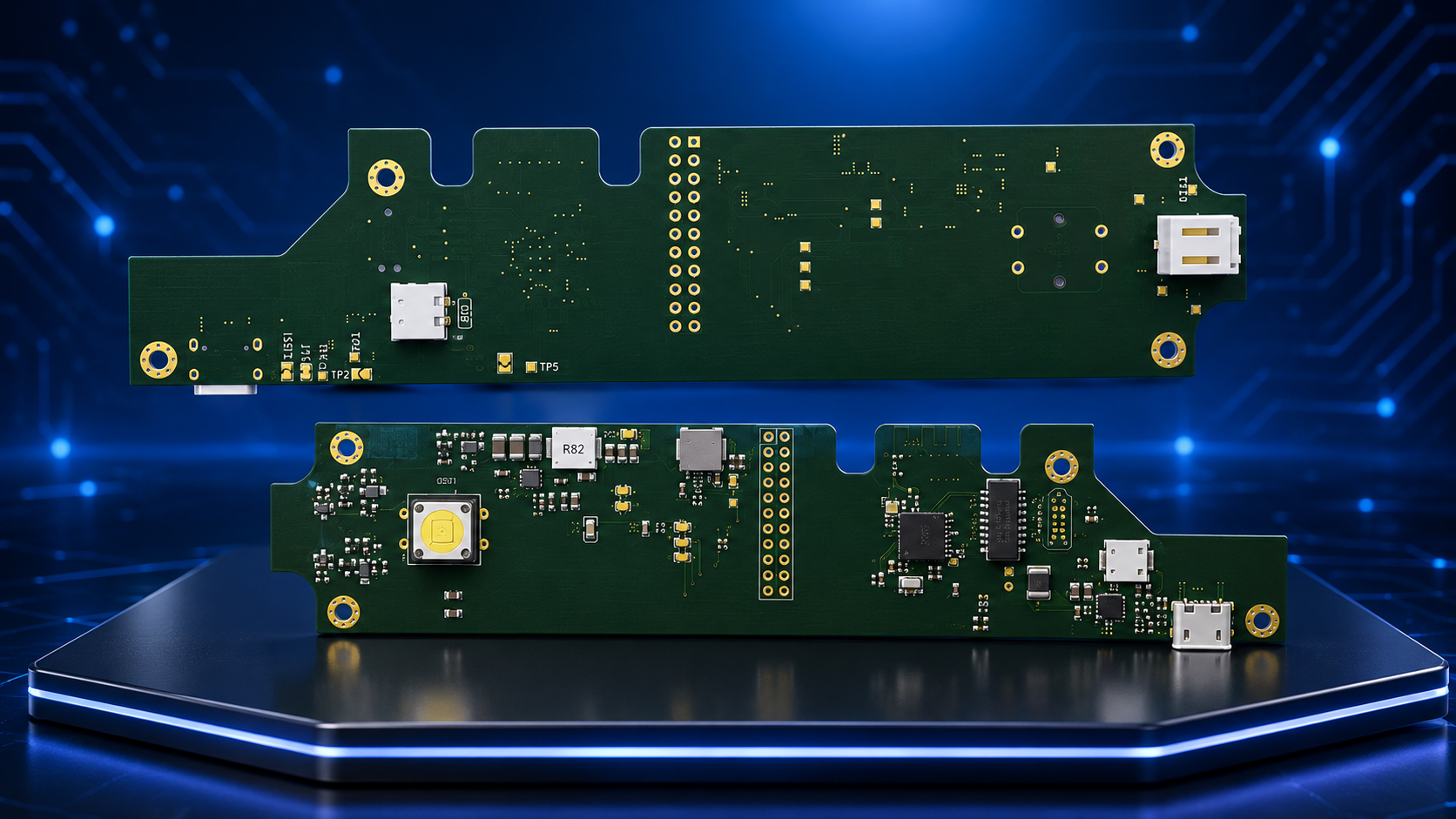

Between commands the firmware keeps the radio and power stages in low-power states, so the driver can stay on standby for long periods on battery. The design went through several iterations, including Bluetooth controller, boost and H-bridge test boards and a USB-C powered development board, to tune output voltage, efficiency and standby current.
